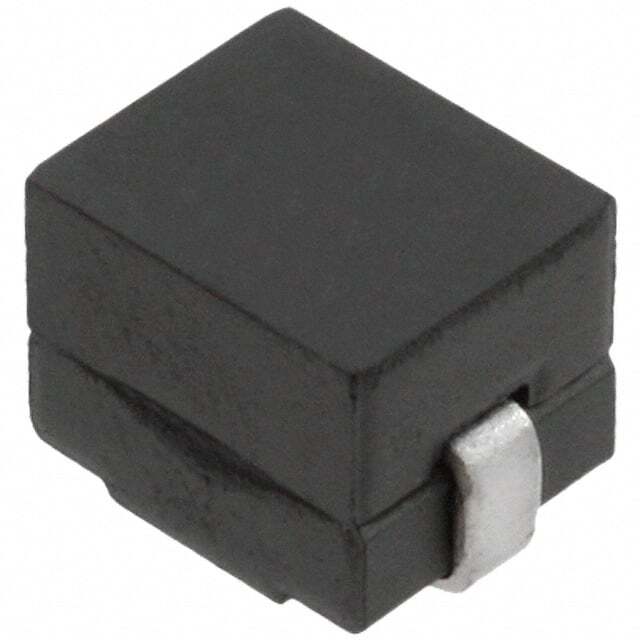

PA2607.181NL

SKU: 144039

Manufacturer: Pulse Electronics

Inductor Power Bead Wirewound 0.175uH 15% 100KHz 41A 0.00029Ohm DCR

2120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power Bead
Technology	Wirewound
Inductance (H)	0.175u
Tolerance	15%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	41
Maximum Saturation Current (A)	62(Typ)
Maximum DC Resistance (Ohm)	0.00029(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	130
Length (mm)	10.41
Terminal Form	Surface Mount
Depth (mm)	7.9
