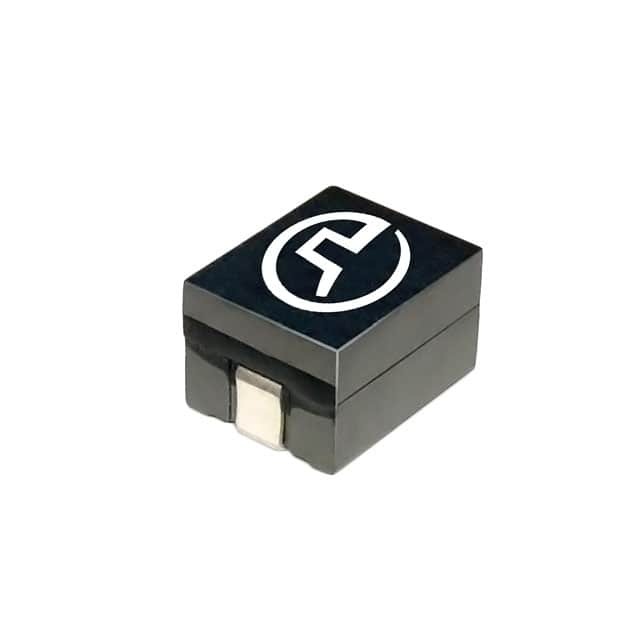

PA2202.181NLT

SKU: 37946

Manufacturer: Pulse Electronics

Inductor Power Bead Wirewound 0.18uH 15% 36A 0.00048Ohm DCR T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power Bead
Technology	Wirewound
Inductance (H)	0.18u
Tolerance	15%
Maximum DC Current (A)	36
Maximum Saturation Current (A)	64
Maximum DC Resistance (Ohm)	0.00048(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tape and Reel
Length (mm)	12.1
Terminal Form	Surface Mount
Depth (mm)	10
