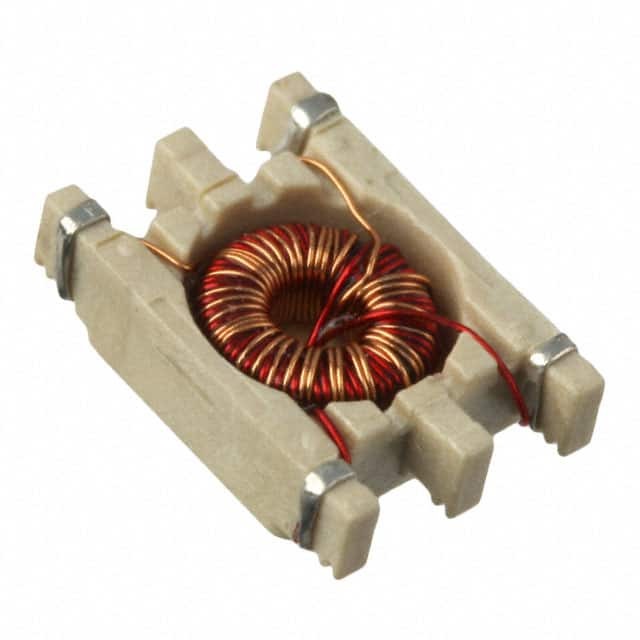

PA2001NL

SKU: 66217

Manufacturer: Pulse Electronics

Pulse Transformer 1:1 1500Vrms 0.6Ohm Prim. DCR 0.6Ohm Sec. DCR 6 Terminal SMD Automotive

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Transformer Type	SMT Gate Drive Transformer
Primary Side Inductance (uH)	403
Maximum Primary Leakage Inductance (uH)	0.46
Maximum Secondary Leakage Inductance (uH)	0.46
Maximum DCR Primary Side (Ohm)	0.6
Maximum DCR Secondary Side (Ohm)	0.6
High Potential	1500Vrms
Primary ET-Constant (Vus)	12
Terminal Form	Surface Mount
Number of Terminals	6
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tube
Product Weight (g)	0.28
Length (mm)	6.73
Depth (mm)	8.64
