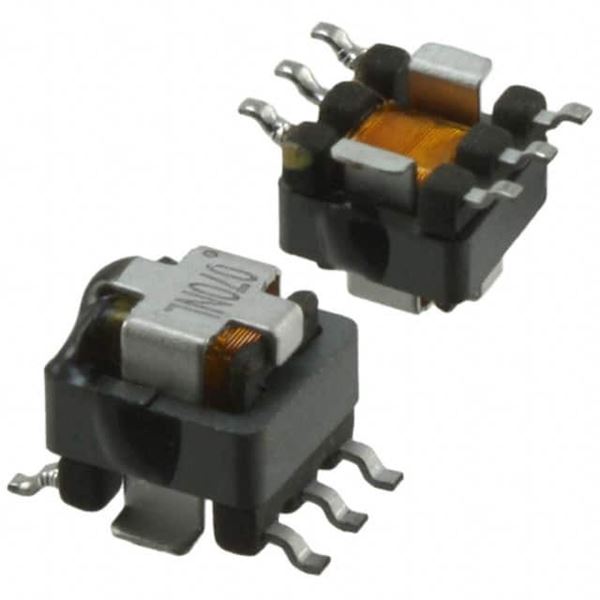

PA1005.100NL

SKU: 105742

Manufacturer: Pulse Electronics

Current Transformer 1:100 1000Vrms 0.00075Ohm Prim. DCR 5.5Ohm Sec. DCR 20000mA Prim. 6 Terminal Gull Wing SMD

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Transformer Type	Current Sense Transformer
Primary Side Current (mA)	20000
Secondary Side Inductance (uH)	2000
Maximum DCR Primary Side (Ohm)	0.00075
Maximum DCR Secondary Side (Ohm)	5.5
High Potential	1000Vrms
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	6
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tray
Product Weight (g)	0.34
Length (mm)	7.21
Depth (mm)	8.38
