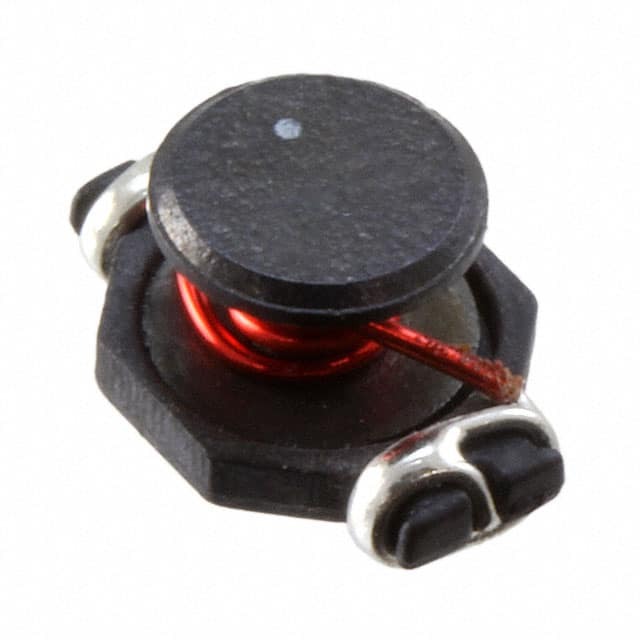

PA0390.472NLT

SKU: 137004

Manufacturer: Pulse Electronics

Inductor Power Unshielded Wirewound 5.2uH 20% 100KHz 2.2A 0.0544Ohm DCR T/R

3490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Inductance (H)	5.2u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2.2
Maximum Saturation Current (A)	2.6
Maximum DC Resistance (Ohm)	0.0544
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tape and Reel
Length (mm)	8.89
Terminal Form	Surface Mount
Depth (mm)	6.1
