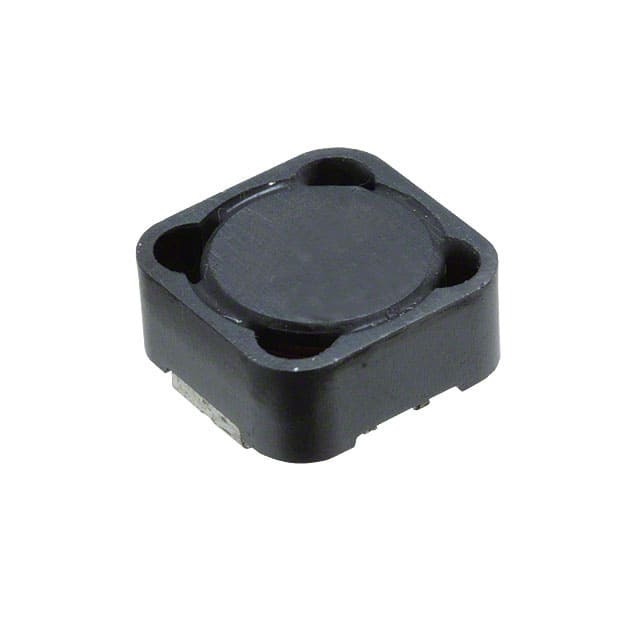

P1171.302NLT

SKU: 158256

Manufacturer: Pulse Electronics

Inductor Power Shielded Wirewound 3uH/2uH 30% 100KHz 8.3A 0.0077Ohm DCR Automotive T/R

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Inductance (H)	3u(OCL)/2u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	8.3
Maximum Saturation Current (A)	8.3
Maximum DC Resistance (Ohm)	0.0077
Minimum Self Resonant Frequency (Hz)	38M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tape and Reel
Length (mm)	12.24
Terminal Form	Surface Mount
Depth (mm)	12.24
