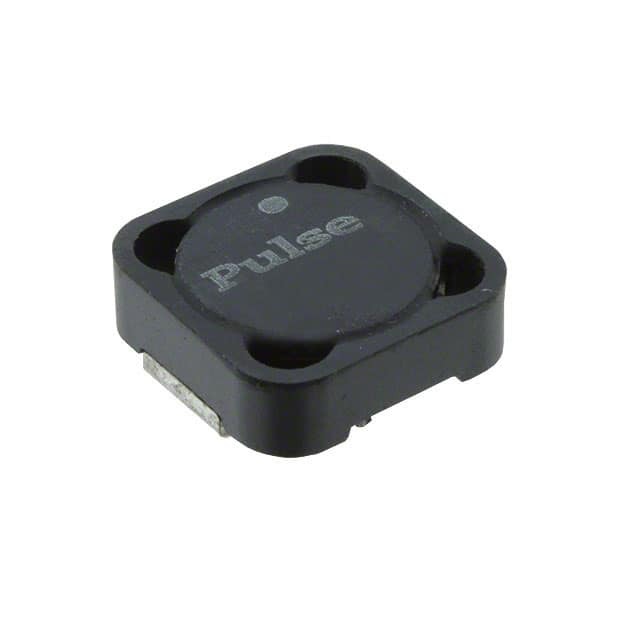

    P1168.102NLT

    SKU: 49305
    Manufacturer: Pulse Electronics
    Inductor Power Shielded Wirewound 1uH/0.65uH 30% 100KHz 11A 0.0037Ohm DCR T/R
    2680 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type Power
    Technology Wirewound
    Protection Style Shielded
    Inductance (H) 1u(OCL)/0.65u
    Tolerance 30%
    Inductance Test Frequency (Hz) 100K
    Maximum DC Current (A) 11
    Maximum Saturation Current (A) 14
    Maximum DC Resistance (Ohm) 0.0037
    Minimum Self Resonant Frequency (Hz) >40M
    Number of Terminals 2
    Operating Temperature-Min -40
    Operating Temperature-Max 130
    Packing Method Tape and Reel
    Length (mm) 12.24
    Terminal Form Surface Mount
    Depth (mm) 12.24
