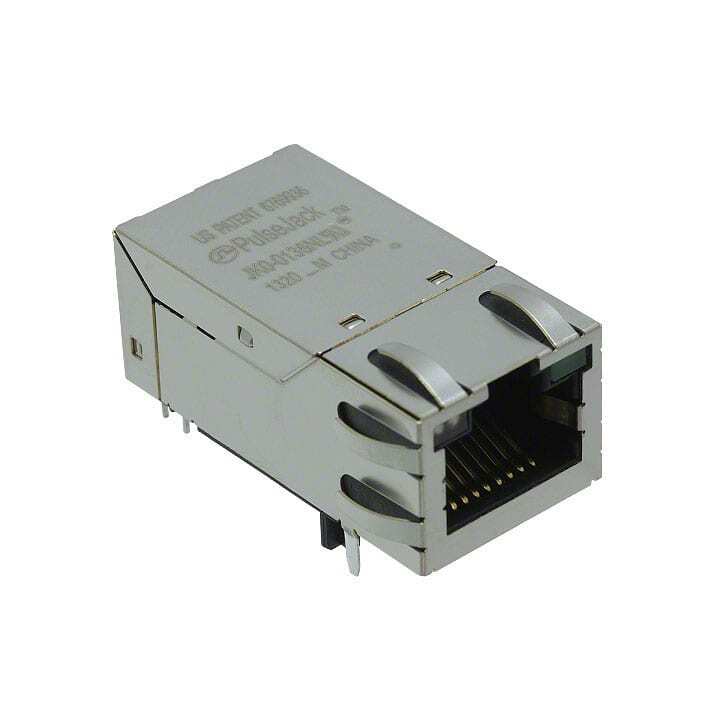

JK0-0136NL

SKU: 40421

Manufacturer: Pulse Electronics

Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 16 Terminal 1 Port Cat 5/Cat 6

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	16
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 5/Cat 6
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Left/Right LED Color	(Green
Mating Cycle (Cycles)	750
Integrated Magnetics	Yes
Shell Body Material	Brass
Shell Plating	Nickel
Operating Temperature-Min	0
Shielding	Yes
Operating Temperature-Max	70
Product Style	Single
Length (mm)	16.79
Depth (mm)	33.02
Height (mm)	14.98
Number of Cores per Jack	4
Ethernet Speed	100BASE-T
Spring Option	Yes
Tab Direction	Up
Distance Between Begs (mm)	12.7
Distance Between Shield Pins (mm)	16.13
