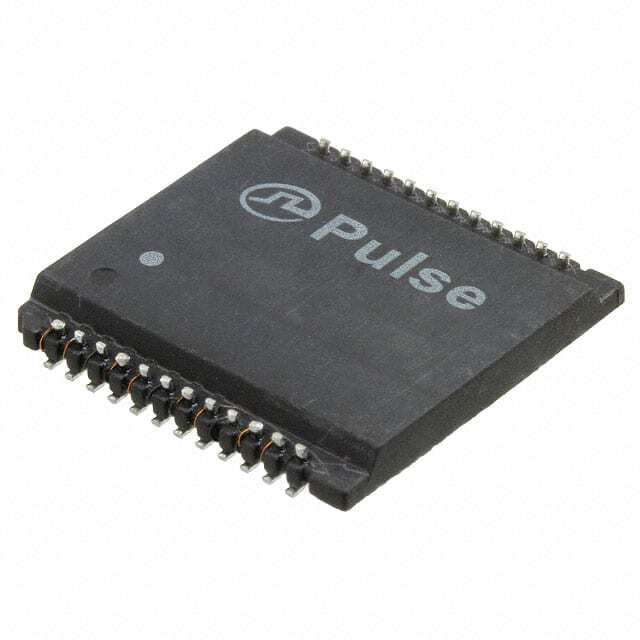

H5019EFNL Pulse Electronics

H5019EFNL

SKU: 86951

Manufacturer: Pulse Electronics

Telecom Transformer 1:1 24 Terminal Gull Wing SMD

Download sample

Request Free Samples

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.32.00.00
SVHC	Yes
Automotive	No
PPAP	No
Transformer Type	Ethernet Transformer
High Potential	1500Vrms
Minimum Crosstalk (dB)	-50@1MHz
Minimum CMRR (dB)	-50@2MHz
Minimum Return Loss (dB)	-18@1MHz to 40MHz
Maximum Insertion Loss (dB)	-3@125MHz
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	24
Operating Temperature-Min	0
Operating Temperature-Max	70
Package Type	DIP
Length (mm)	19.81
Depth (mm)	19.6
