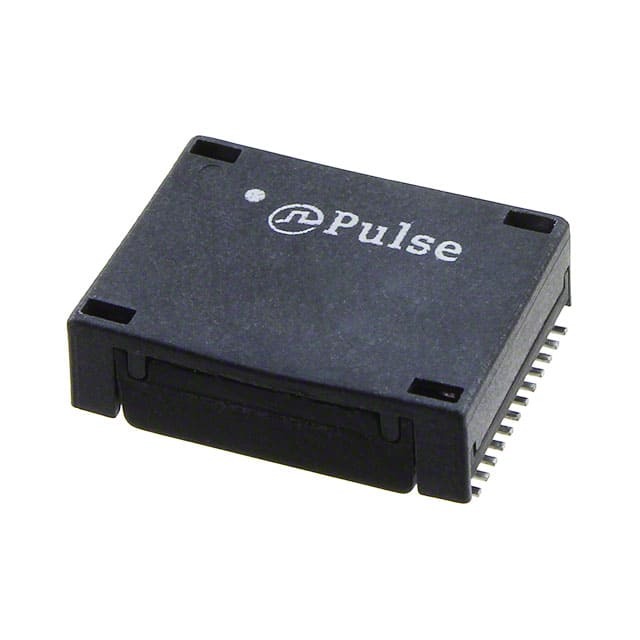

H5008FNL

SKU: 103749

Manufacturer: Pulse Electronics

Telecom Transformer 4(1:1) 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 24 Terminal Gull Wing SMD

2170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.32.00.00
Automotive	No
PPAP	No
Transformer Type	1000Base-T Transformer
Maximum DCR Primary Side (Ohm)	0.65
Maximum DCR Secondary Side (Ohm)	0.65
High Potential	1500Vrms
Minimum Crosstalk (dB)	-50@1MHz
Minimum CMRR (dB)	-50@2MHz
Minimum Return Loss (dB)	-16@0.1MHz to 40MHz
Maximum Insertion Loss (dB)	-1.2@100KHz
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	24
Operating Temperature-Min	0
Operating Temperature-Max	70
Package Type	SMD
Length (mm)	13.67
Depth (mm)	18.87
