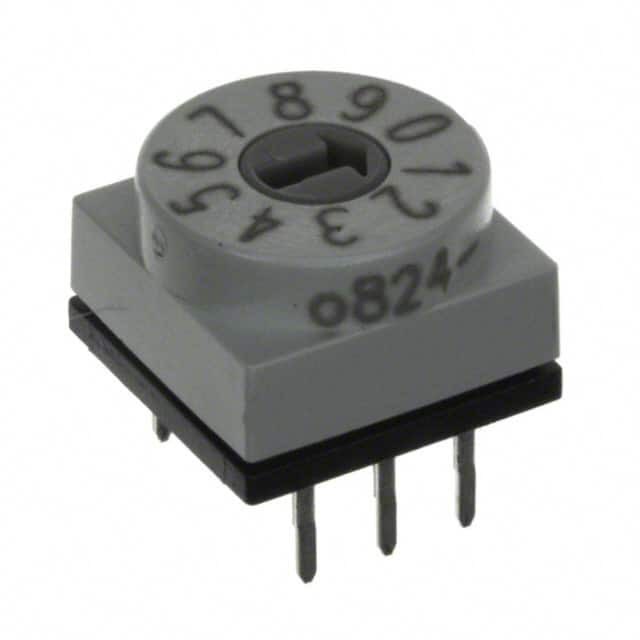

PT65101

SKU: 77555

Manufacturer: PTR HARTMANN GmbH

Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.15A 42VAC 42VDC PC Pins 30000Cycles 2.54mm Thru-Hole Tube

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	Unknown
PPAP	Unknown
Type	Rotary DIP Code Switch
Actuator Style	Flush Screwdriver
Pole Throw Configuration	SP10T
Switch Configuration	N.O./N.C.
Number of Positions	10
Current Rating-Max(A)	0.15
Maximum Nonswitching Current (mA)	200
Maximum AC Voltage Rating (V)	42
Maximum DC Voltage Rating (V)	42
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	>100
Maximum Contact Resistance (mOhm)	<80
Mechanical Life (Cycles)	30000
Coding	BCD
Actuator Length (mm)	0
Seal	O-Ring
Seal Description	O-Ring
Terminal Form	Through Hole
Terminal Form	PC Pins
Terminal Pitch (mm)	2.54
Number of Terminals	6
Total Pitch (mm)	5.08
Row Space (mm)	7.62
Body Orientation	Straight
Operating Temperature-Min	-20
Operating Temperature-Max	70
Packing Method	Tube
Body Length (mm)	10
Body Depth (mm)	10
Body Height (mm)	6.5
Length (mm)	10
Depth (mm)	10
