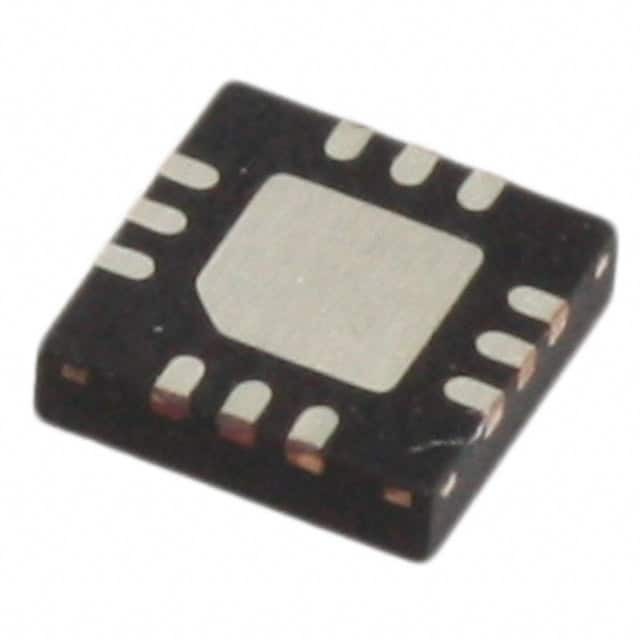

PE42750MLAA-Z

SKU: 56515

Manufacturer: pSemi Corporation

RF Switch SPDT 5MHz to 2.2GHz 50dB 12-Pin QFN EP T/R

16170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	5
Switching Speed (ns)	3000
Frequency Band (MHz)	5 to 2200
Maximum Frequency (MHz)	2200
Minimum Isolation Voltage (dB)	50
Maximum Insertion Loss (dB)	1.8
Typical Input 1dB Compressed Power (dBm)	23.5
Technology	UltraCMOS
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.63
High Control Voltage (V)	1.89 to 3.63
Typical Supply Current (mA)	0.008
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	12
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	12
