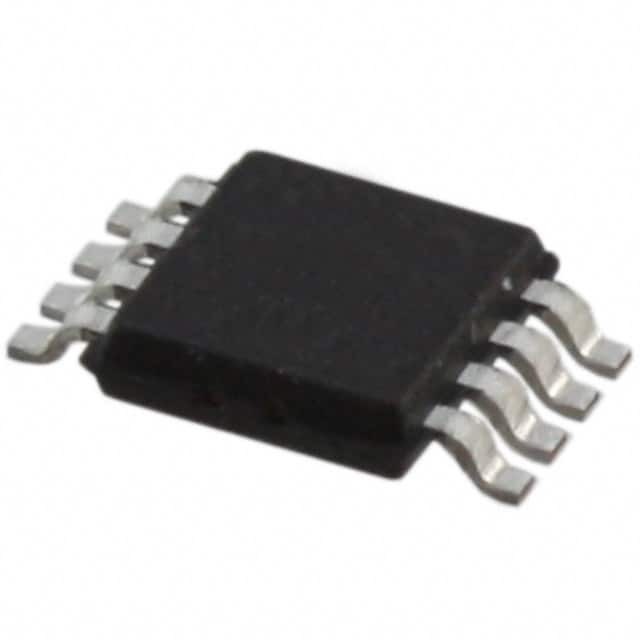

PE4251MLI-Z

SKU: 120004

Manufacturer: pSemi Corporation

RF Switch SPDT 10MHz to 4GHz 42dB 8-Pin MSOP EP T/R

26800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	300
Frequency Band (MHz)	10 to 4000
Maximum Frequency (MHz)	4000
Minimum Isolation Voltage (dB)	42
Maximum Insertion Loss (dB)	0.9
Typical Input 1dB Compressed Power (dBm)	30.5
Technology	UltraCMOS
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
High Control Voltage (V)	3.6
Typical Supply Current (mA)	0.055
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	MSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
