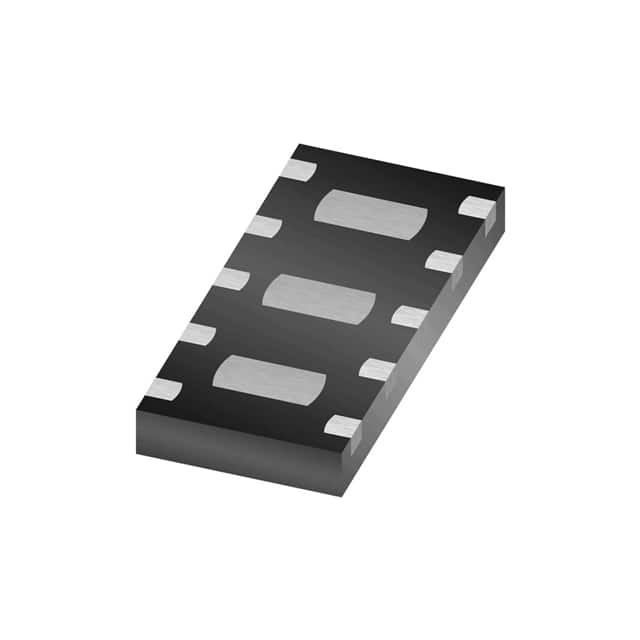

SRV25-4-T7

SKU: 50269

Manufacturer: ProTek Devices

ESD Suppressor Diode Diode Array Uni-Dir 2.5V 10-Pin DFN EP T/R

3870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Diode Array
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	2.5
Maximum Clamping Voltage (V)	7.4
Maximum Leakage Current (uA)	0.5
Peak Pulse Power Dissipation (W)	800
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	10
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	3.1(Max)
Package Width	2.1(Max)
