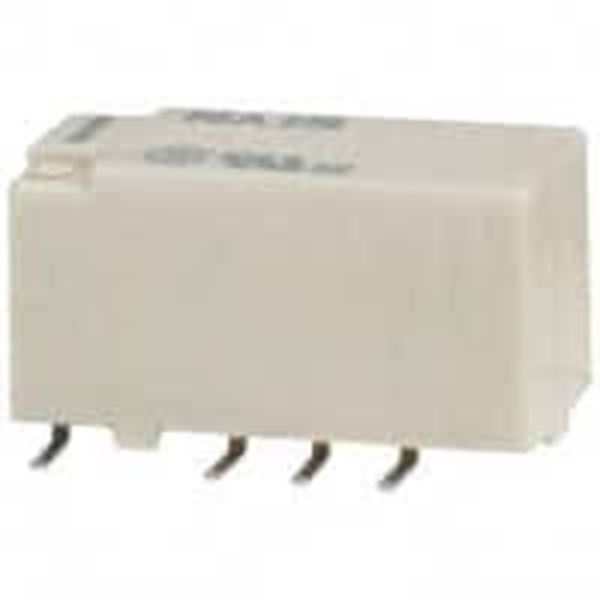

TXS2SA-L2-3V-Z

SKU: 87726

Manufacturer: Panasonic

Signal Relay 3VDC 1A DPDT( (15mm 9.4mm 8.4mm)) SMD

3220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	3
Coil Current (mA)	23.3
Coil Resistance (Ohm)	129
Maximum Pick-Up Voltage	2.4VDC
Minimum Dropout Voltage	2.4VDC
Maximum DC Switching Voltage (V)	110
Maximum Switching Current (A)	1
Operate Time (ms)	5
Relay Construction	Latching Double Coil
Contact Body Material	Silver/Gold Clad
Maximum Switching Power	30W
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	10
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Package Type	SMD
Product Weight (g)	2
Length (mm)	15
Depth (mm)	9.4
