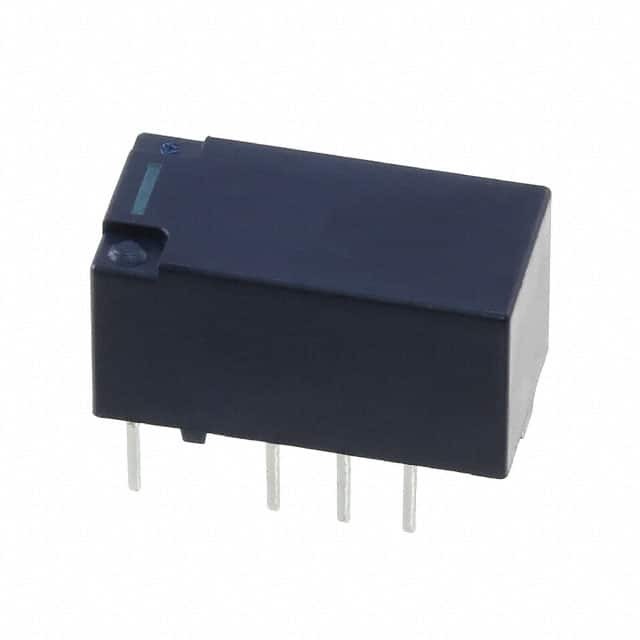

TXS2-3V

SKU: 151550

Manufacturer: Panasonic

Signal Relay 3VDC 1A DPDT( (15mm 7.4mm 8.2mm)) THT

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	3
Coil Current (mA)	16.7
Coil Resistance (Ohm)	180
Maximum Pick-Up Voltage	2.4VDC
Minimum Dropout Voltage	0.3VDC
Maximum DC Switching Voltage (V)	110
Maximum Switching Current (A)	1
Operate Time (ms)	5
Relay Construction	Non-Latching
Contact Body Material	Silver/Gold Clad
Maximum Switching Power	30W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	8
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Package Type	DIP
Product Weight (g)	2
Length (mm)	15
Depth (mm)	7.4
