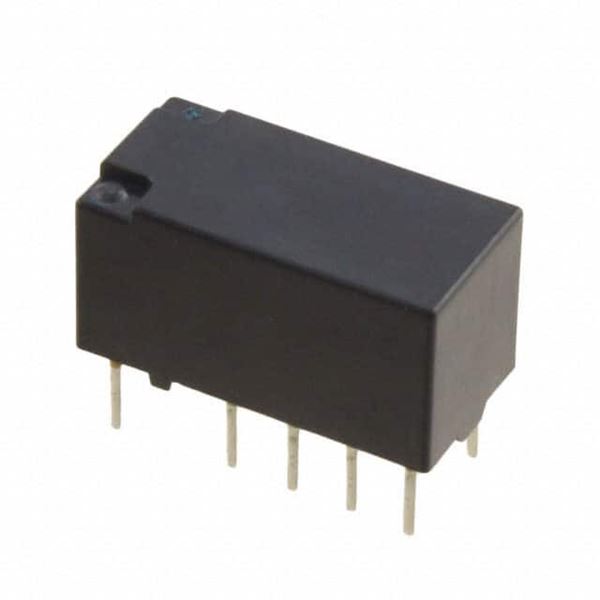

TX2-LT-3V-TH

SKU: 100132

Manufacturer: Panasonic

Signal Relay 3VDC 7.5A DPDT( (15mm 7.4mm 8.2mm)) THT

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	3
Coil Current (mA)	46.7
Coil Resistance (Ohm)	64.3
Maximum Contact Resistance (mOhm)	100
Insulation Resistance (MOhm)	1000
Maximum Pick-Up Voltage	2.25VDC
Minimum Dropout Voltage	2.25VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	7.5
Operate Time (ms)	4
Release Time (ms)	4
Electrical Life (Operations)	100000
Mechanical Life (Operations)	100000000
Relay Construction	Latching Double Coil
Contact Body Material	Silver/Gold Clad
Maximum Switching Power	60W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	10
IP Rating	IP67
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	2
Length (mm)	15
Depth (mm)	7.4
