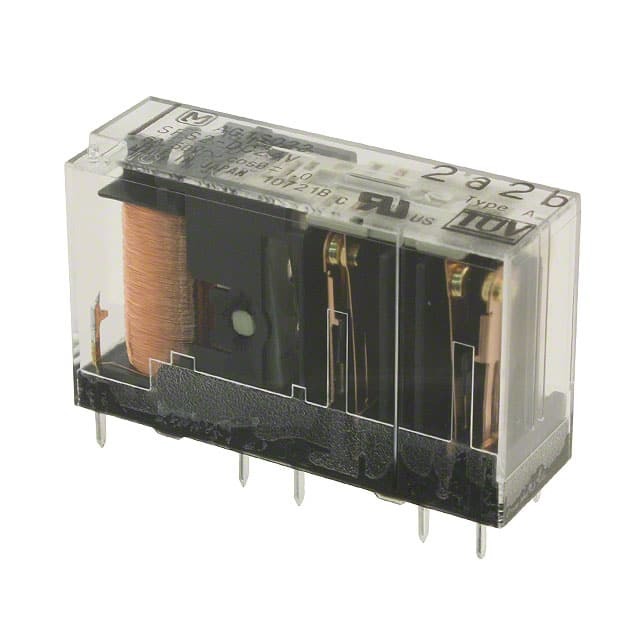

SFS4-DC24V

SKU: 38058

Manufacturer: Panasonic

Power Relay 24VDC 6A 4PST-NO/DPST-NC(50x13x24)mm THT Automotive

1780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	Unknown
PPAP	Unknown
Contact Arrangement	4PST-NO
Contact Form	4 Form A
DC Coil Voltage (V)	24
Coil Current (mA)	20.8
Coil Resistance (Ohm)	1.152K
Maximum Pick-Up Voltage	18VDC
Minimum Dropout Voltage	2.4VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	125
Maximum Switching Current (A)	6
Maximum Switching Power	180W
Operate Time (ms)	20
Release Time (ms)	8
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	14
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	23
Length (mm)	50
Depth (mm)	13
