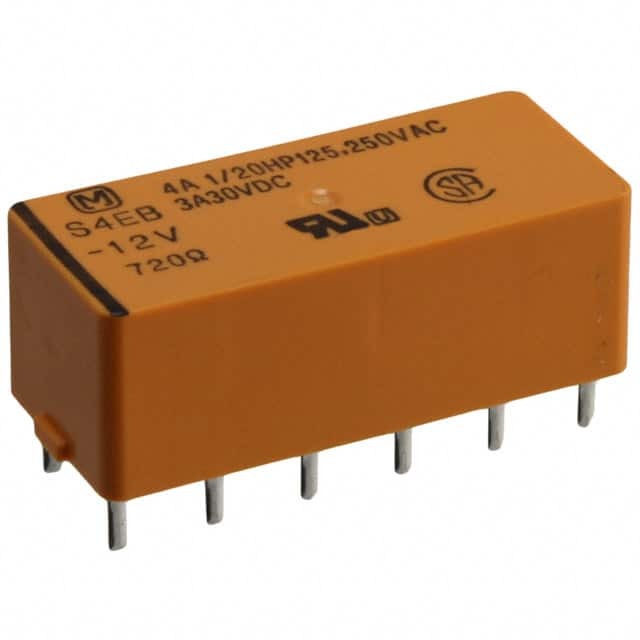

S4EB-12V

SKU: 144129

Manufacturer: Panasonic

Power Relay 12VDC 3DC/4AAC 4PST-NO(28mm 12mm 10.4mm) THT

920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.20
Automotive	No
PPAP	No
Contact Arrangement	4PST-NO
Contact Form	4 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	16.7
Coil Resistance (Ohm)	720
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	50
Maximum Pick-Up Voltage	8.4VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	48
Maximum Switching Current (A)	4AC
Maximum Switching Power	1kVA
Operate Time (ms)	15
Release Time (ms)	10
Mechanical Life (Operations)	100000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	12
Operating Temperature-Min	-55
Operating Temperature-Max	65
Package Type	DIP
Product Weight (g)	8
Length (mm)	28
Depth (mm)	12
