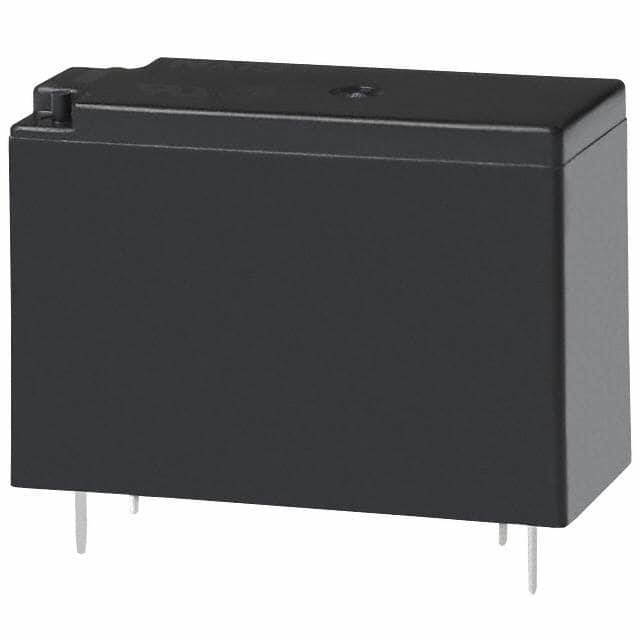

JW1AFSN-DC9V-F

SKU: 19191

Manufacturer: Panasonic

Power Relay 9VDC 10A SPST-NO(28.6mm 12.8mm 20mm) THT

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	9
Coil Current (mA)	58
Coil Resistance (Ohm)	155
Maximum Pick-Up Voltage	6.3VDC
Minimum Dropout Voltage	0.9VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	10
Maximum Switching Power	300W
Operate Time (ms)	15
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	60
Product Weight (g)	13
Length (mm)	28.6
Depth (mm)	12.8
