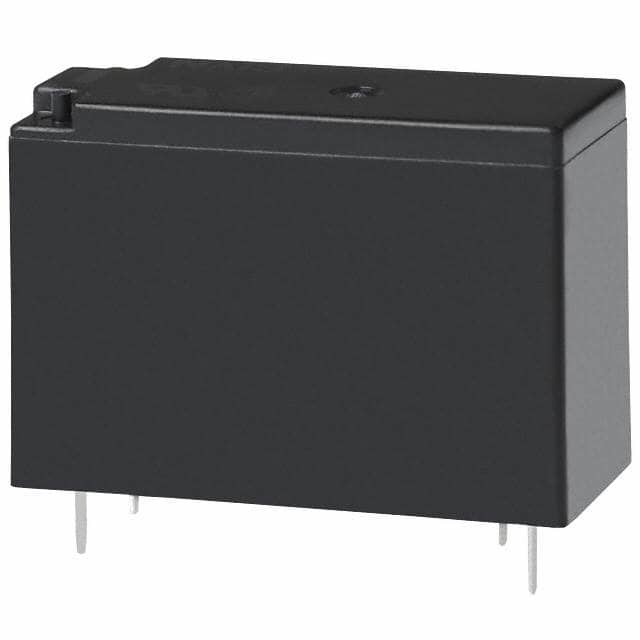

JW1AFSN-DC12V Panasonic

JW1AFSN-DC12V

SKU: 146519

Manufacturer: Panasonic

Power Relay 12VDC 10A SPST-NO(28.6x12.8x20)mm THT

Download sample

Request Free Samples

2580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	44
Coil Resistance (Ohm)	270
Maximum Pick-Up Voltage	8.4VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	10
Maximum Switching Power	300W
Operate Time (ms)	15
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	60
Product Weight (g)	13
Length (mm)	28.6
Depth (mm)	12.8
