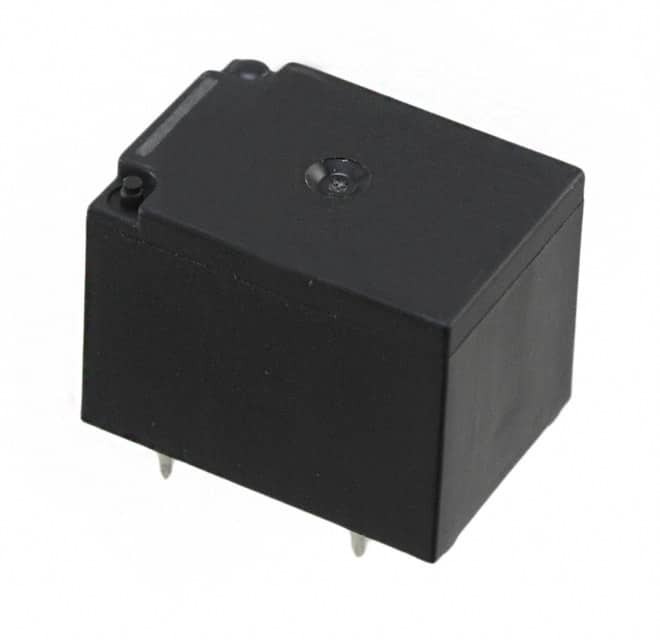

JS1-9V-F Panasonic

JS1-9V-F

SKU: 37582

Manufacturer: Panasonic

Power Relay 9VDC 5DC/10AAC SPDT(22x16x16.4)mm THT

Download sample

Request Free Samples

3670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	9
Coil Current (mA)	40
Coil Resistance (Ohm)	225
Maximum Pick-Up Voltage	6.3VDC
Minimum Dropout Voltage	0.9VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	100
Maximum Switching Current (A)	5DC
Maximum Switching Power	150W
Operate Time (ms)	10
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Operating Temperature-Min	-40
Operating Temperature-Max	70
Product Weight (g)	12
Length (mm)	22
Depth (mm)	16
