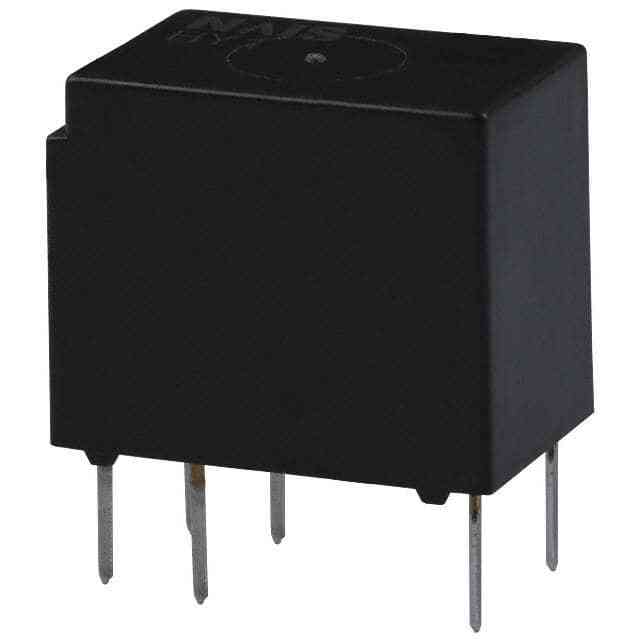

HY1Z-9V

SKU: 157861

Manufacturer: Panasonic

Signal Relay 9VDC 405Ohm 1A SPDT(12x7.4x10.1)mm THT Non Polarized Relay

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	9
Coil Current (mA)	22.2
Coil Resistance (Ohm)	405
Maximum Pick-Up Voltage	6.75VDC
Minimum Dropout Voltage	0.9VDC
Maximum DC Switching Voltage (V)	60
Operate Time (ms)	5
Relay Construction	Non-Latching
Contact Body Material	Silver/Gold Clad
Maximum Switching Power	30W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	6
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Package Type	DIP
Product Weight (g)	1.8
Length (mm)	12
Depth (mm)	7.4
