HE1AN-W-DC12V-Y6 Panasonic

HE1AN-W-DC12V-Y6

SKU: 139312

Manufacturer: Panasonic

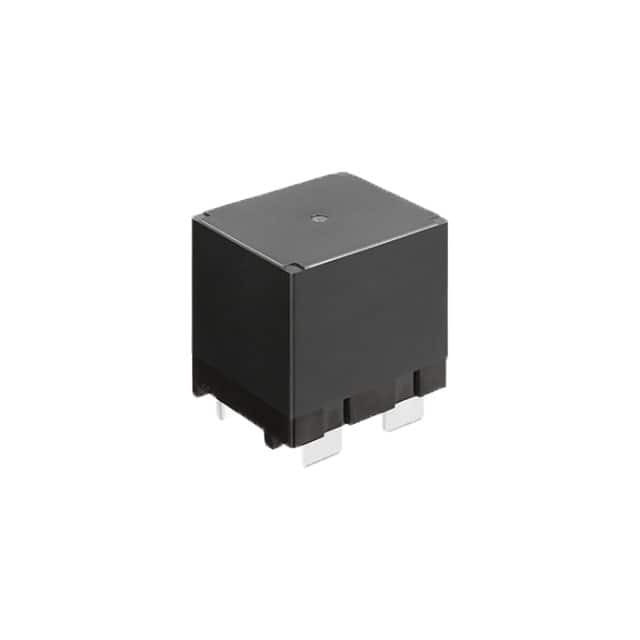

Power Relay 12VDC 90A SPST-NO(33x38x38.8)mm THT

Download sample

Request Free Samples

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.75
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	160
Coil Resistance (Ohm)	75
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Maximum Pick-Up Voltage	8.4VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	277
Maximum Switching Current (A)	90
Maximum Switching Power	24.93kVA
Operate Time (ms)	30
Release Time (ms)	10
Electrical Life (Operations)	10000
Mechanical Life (Operations)	10000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	Blade Terminal
Number of Terminals	4
Operating Temperature-Min	-50
Operating Temperature-Max	55
Product Weight (g)	85
Length (mm)	33
Depth (mm)	38
