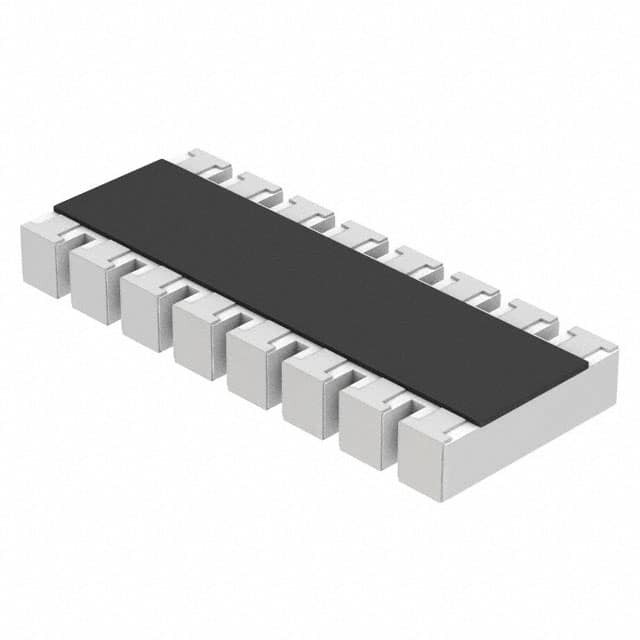

EXB-2HV104JV

SKU: 68401

Manufacturer: Panasonic

Res Thick Film Array 100K Ohm 5% 0.25W(1/4W) ±200ppm/°C ISOL Molded 16-Pin 1506(8 X 0602) Convex SMD Automotive T/R

4590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	Yes
PPAP	Unknown
Type	Array
Number of Resistors	8
Resistance Value (Ohm)	100K
Tolerance	5%
Voltage Rating-Max (V)	25
Power Rating (W)	0.25 (1/4)
Power Rating per Resistor (W)	0.063 (1/16)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Style	Molded
Case Size	1506
Case Size per Element	0602
Terminal Form	Convex
Number of Terminals	16
Terminal Pitch (mm)	0.5
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1506(8 X 0602)
Length (mm)	3.8
Depth (mm)	1.6
Height (mm)	0.45
Length Tolerance (mm)	±0.1
Depth Tolerance (mm)	±0.1
Height Tolerance (mm)	±0.1
