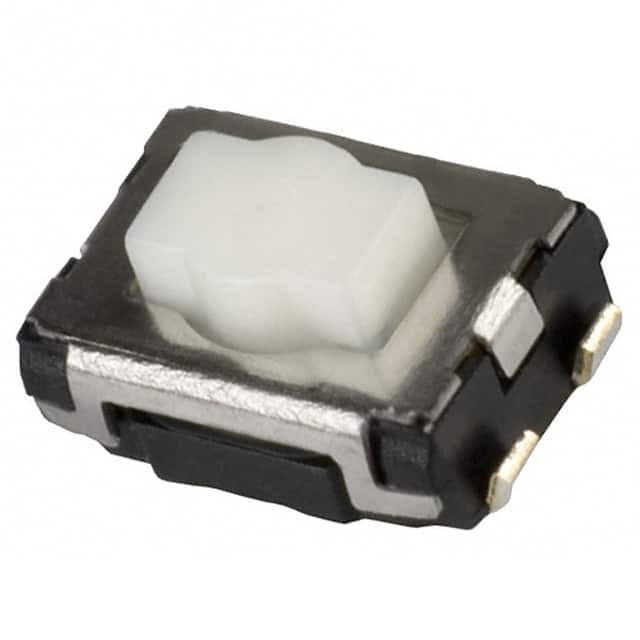

EVQ-P2402W

SKU: 37475

Manufacturer: Panasonic

Switch Tactile N.O. SPST Button J-Bend 0.02A 15VDC 2.4N SMD Automotive T/R

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	Unknown
PPAP	Unknown
Type	Light Touch
Pole Throw Configuration	SPST
Actuator Style	Button
Switch Configuration	N.O.
Current Rating-Max(A)	0.02@15VDC
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	500000
Operating Force (N)	2.4
Actuator Color	Natural
Actuator Length (mm)	0.85
Number of Rows	2
Row Spacing (mm)	5.15
Terminal Form	Surface Mount
Terminal Form	J-Bend
Number of Terminals	4
Terminal Length (mm)	0.4
Terminal Pitch (mm)	1.7
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Body Length (mm)	4.7
Body Depth (mm)	3.5
Body Height (mm)	1.65
Length (mm)	5.5
Depth (mm)	3.5
