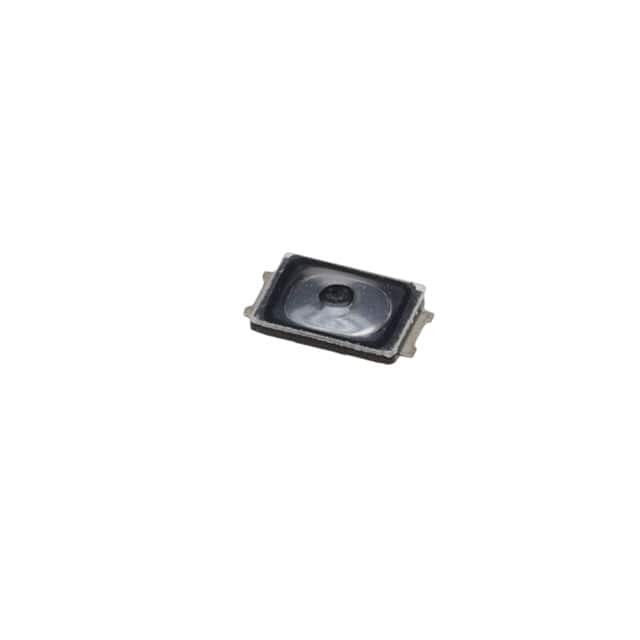

EVP-AWED4A

SKU: 117837

Manufacturer: Panasonic

Switch Tactile N.O. SPST Round Button Gull Wing 0.02A 15VDC 3.3N SMD T/R

2260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Light Touch
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switch Configuration	N.O.
Current Rating-Max(A)	0.02@15VDC
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	50
Maximum Contact Resistance (mOhm)	500
Electrical Life (Cycles)	500000
Operating Force (N)	3.3
Actuator Length (mm)	0.22
Number of Rows	1
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	2
Terminal Pitch (mm)	3.25
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	3.5
Depth (mm)	2
