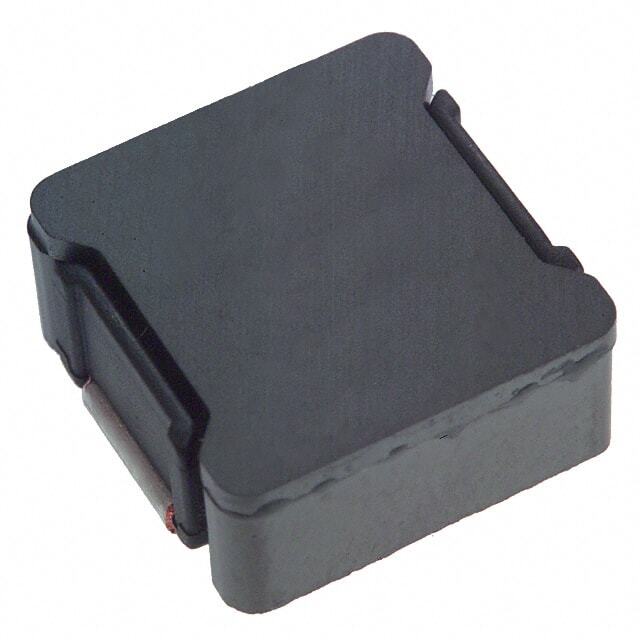

ETQ-P6F102HFA

SKU: 93907

Manufacturer: Panasonic

Power Choke Molded Wirewound 12.5uH/10.2uH 25% 100KHz 6.5A 0.0133Ohm DCR T/R

3260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power Choke
Technology	Wirewound
Protection Style	Molded
Inductance (H)	12.5u(OCL)/10.2u
Tolerance	25%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	6.5
Maximum Saturation Current (A)	4.7
Maximum DC Resistance (Ohm)	0.0133
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
Length (mm)	12.9
Terminal Form	Surface Mount
Depth (mm)	12.8
