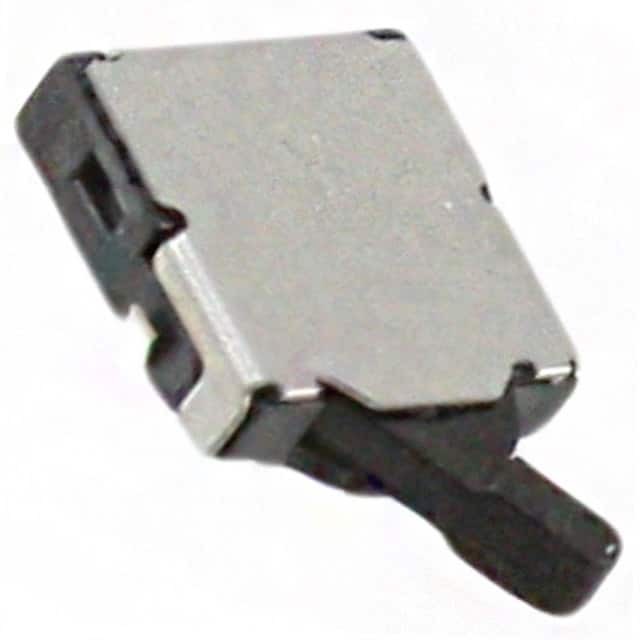

ESE-18L11B

SKU: 54358

Manufacturer: Panasonic

Switch Detector N.O. SPST Lever J-Bend 0.01A 5VDC SMD T/R

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Actuator Style	Lever
Switch Configuration	N.O.
Pole Throw Configuration	SPST
Current Rating-Max(A)	0.01@5VDC
Maximum DC Voltage Rating (V)	5
Dielectric Strength	100VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	500
Electrical Life (Cycles)	50000
Operating Force (N)	0.3
Terminal Form	Surface Mount
Terminal Form	J-Bend
Number of Terminals	2
Body Orientation	Right Angle
Total Travel (mm)	1.4
Operating Temperature-Min	-10
Operating Temperature-Max	60
Packing Method	Tape and Reel
Actuator Length (mm)	2.15
Body Length (mm)	4
Body Depth (mm)	4.15
Body Height (mm)	1.2
Length (mm)	4.85
Depth (mm)	6.55
