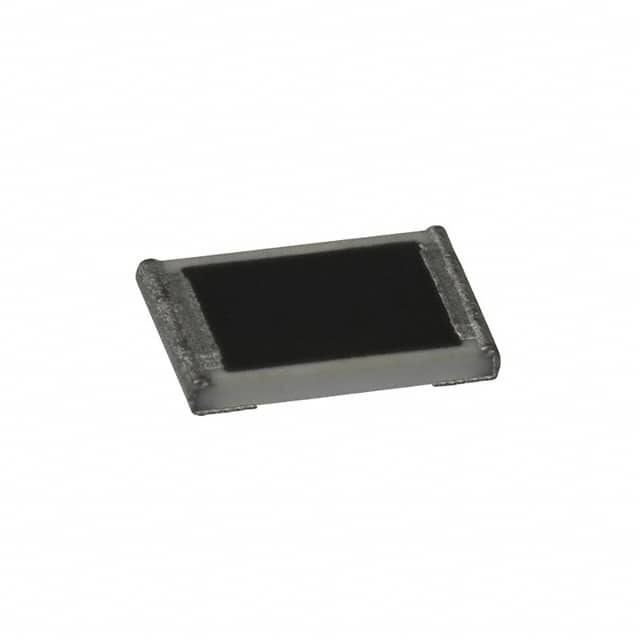

ERJ-XGNJ2R2Y

SKU: 89429

Manufacturer: Panasonic

Res Thick Film 01005 2.2 Ohm 5% 0.031W(1/32W) -100ppm/°C to 600ppm/°C Pad SMD T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	No
PPAP	No
Resistance Value (Ohm)	2.2
Tolerance	5%
Voltage Rating-Max (V)	15
Current Sensing	No
Power Rating (W)	0.031 (1/32)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	-100 to 600
Temperature Range @ Derated Power (°C)	70 to 125
Special Features	High Reliability
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	No
Case Size	01005
Terminal Form	Pad
Number of Terminals	2
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	01005
Length (mm)	0.4
Depth (mm)	0.2
Height (mm)	0.13
Product Weight (g)	0.00004
Length Tolerance (mm)	±0.02
Depth Tolerance (mm)	±0.02
Height Tolerance (mm)	±0.02
