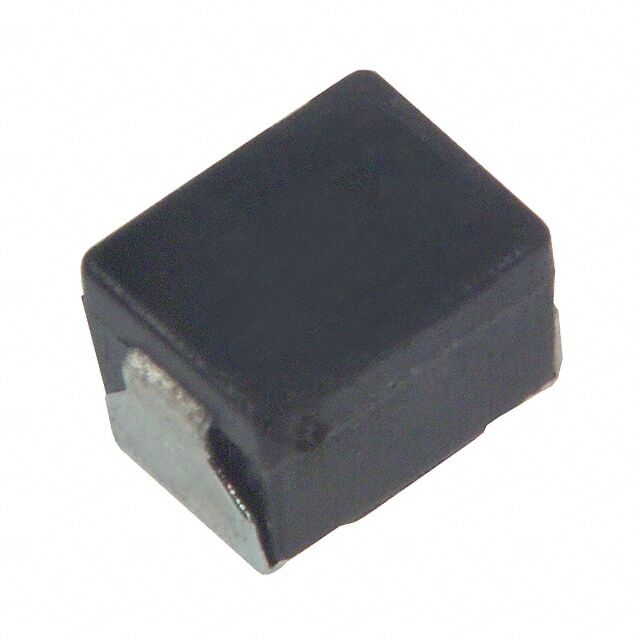

ELJ-NAR22KF

SKU: 89344

Manufacturer: Panasonic

Inductor High Frequency Chip Wirewound 0.22uH 10% 1MHz 10Q-Factor Ceramic 0.21A 0.9Ohm DCR 1210 T/R

910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	High Frequency Chip
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	0.22u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	0.21
Maximum Saturation Current (A)	0.21
Maximum DC Resistance (Ohm)	0.9
Minimum Quality Factor	10
Quality Test Frequency (Hz)	25.2M
Minimum Self Resonant Frequency (Hz)	280M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	3.5
Terminal Form	Surface Mount
Depth (mm)	2.7
