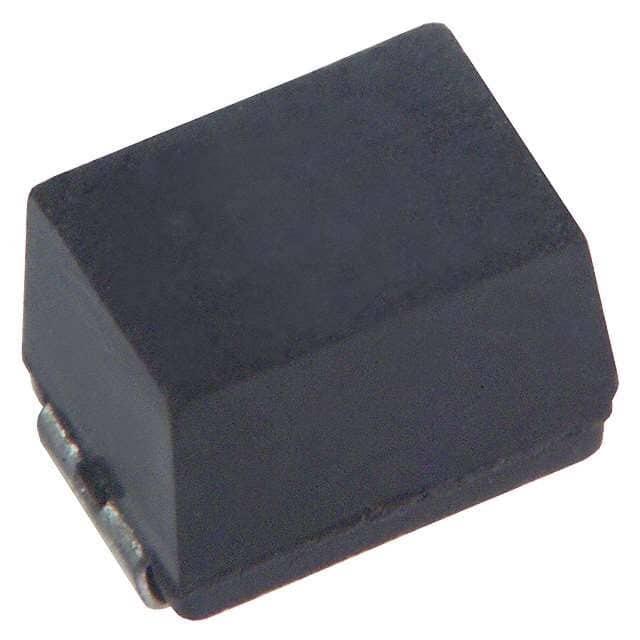

ELJ-FB331JF

SKU: 16193

Manufacturer: Panasonic

Inductor General Purpose Chip Molded Wirewound 330uH 5% 100KHz 40Q-Factor Ferrite 0.075A 16Ohm DCR 1812 T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	330u
Tolerance	5%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.075
Maximum DC Resistance (Ohm)	16
Minimum Quality Factor	40
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	3.7M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	4.8
Terminal Form	Surface Mount
Depth (mm)	3.4
