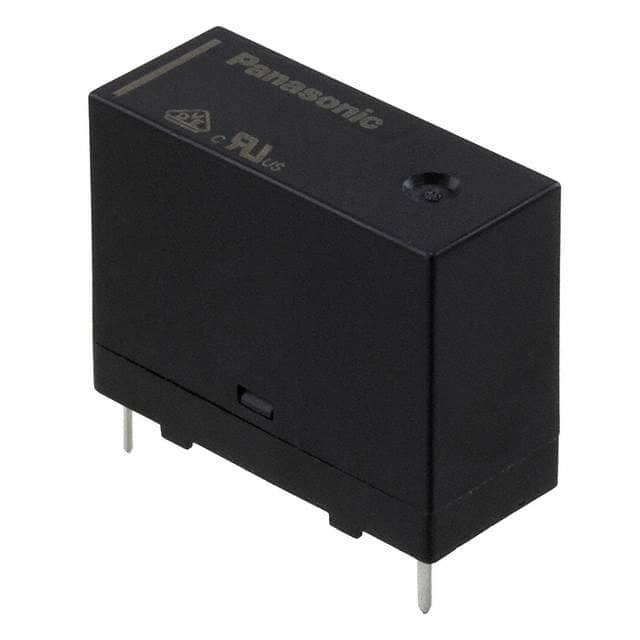

ADW1212HLW

SKU: 31869

Manufacturer: Panasonic Electric Works

Power Relay 12VDC 16A SPST-NO(24mm 10mm 15.8mm) THT

1580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	33.3
Coil Resistance (Ohm)	360
Maximum Pick-Up Voltage	9.6VDC
Minimum Dropout Voltage	9.6VDC
Maximum AC Switching Voltage (V)	277
Maximum Switching Current (A)	16
Maximum Switching Power	4.432kVA
Operate Time (ms)	15
Release Time (ms)	15
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Latching Double Coil
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	7.5
Length (mm)	24
Depth (mm)	10
