EEU-FR1H221B

SKU: 25758

Manufacturer: Panasonic

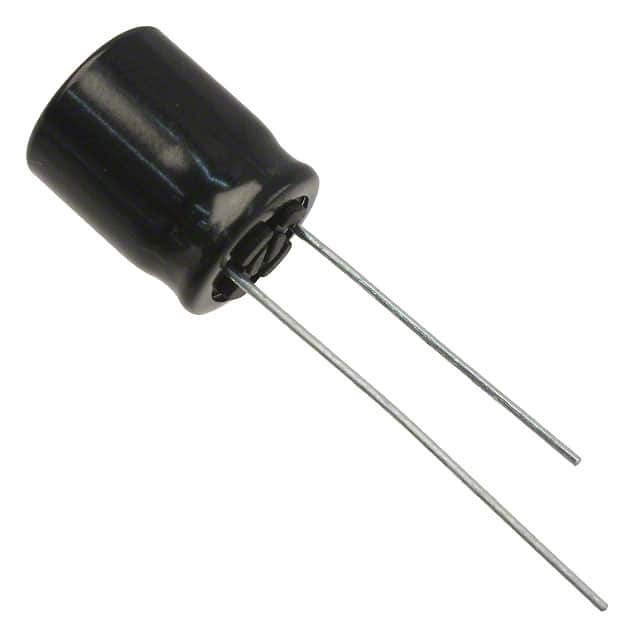

Cap Aluminum Lytic 220uF 50V 20% (10 X 16mm) Radial 5mm 1650mA 8000h 105°C Ammo

830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.40
Automotive	No
PPAP	No
Type	Electrolytic
Capacitance Value	220uF
Tolerance	20%
Voltage	50VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.03@20°C@100kHz
IR (mA)	1650
IL (uA)	110@2Min
Lifetime (h)	8000
Polarity	Polar
Construction	Aluminum Cylindrical Can
Terminal Form	Through Hole
Terminal Form	Radial
Number of Terminals	2
Terminal Pitch (mm)	5
Wire Form	Long Lead
Size (mm)	10 X 16
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Ammo
Product Diameter (mm)	10
Height (mm)	16
Product Weight (g)	2
