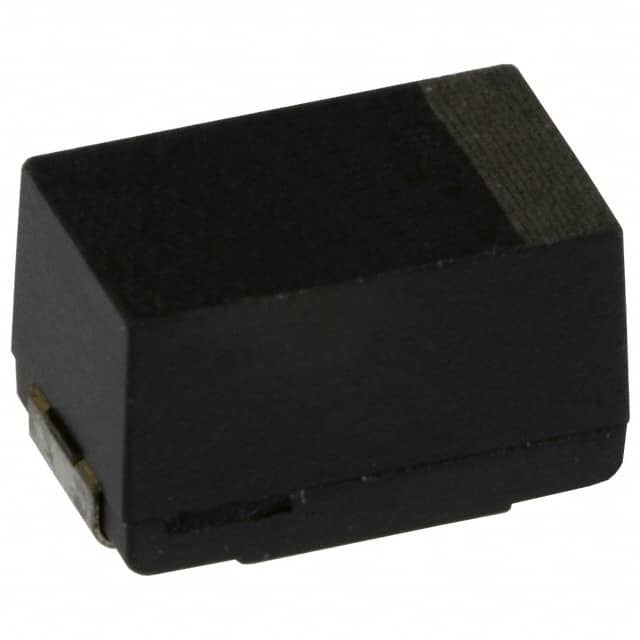

    EEF-UE0G271R

    SKU: 79768
    Manufacturer: Panasonic
    Cap Aluminum Polymer 270uF 4VDC 20% (7.3 X 4.3 X 4.2mm) SMD 0.012 Ohm 3300mA 1000h 105°C T/R
    3840 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8532.22.00.20
    Automotive No
    PPAP No
    Type Polymer
    Capacitance Value 270uF
    Tolerance 20%
    Voltage 4VDC
    ESR (Ohm) 0.012
    Equivalent Series Resistance Type Low
    IR (mA) 3300
    IL (uA) 64.8@2Min
    Lifetime (h) 1000
    Polarity Polar
    Construction Flat
    Terminal Form Surface Mount
    Maximum Terminal Width (mm) 4.5
    Number of Terminals 2
    Size (mm) 7.3 X 4.3 X 4.2
    Operating Temperature-Min -40
    Operating Temperature-Max 105
    Packing Method Tape and Reel
    Length (mm) 7.3
    Depth (mm) 4.3
