EEF-SX0J680R

SKU: 30330

Manufacturer: Panasonic

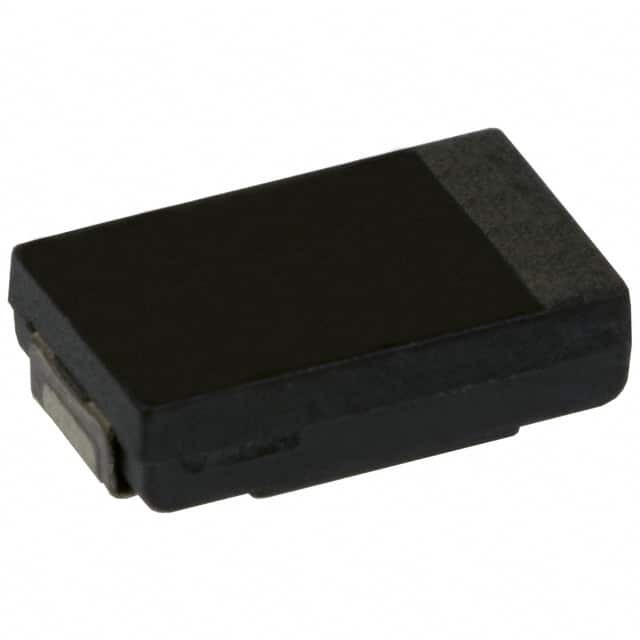

Cap Aluminum Polymer 68uF 6.3VDC 20% (7.3 X 4.3 X 1.9mm) SMD 0.009 Ohm 3000mA 2000h 105°C T/R

2770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	Polymer
Capacitance Value	68uF
Tolerance	20%
Voltage	6.3VDC
ESR (Ohm)	0.009
Equivalent Series Resistance Type	Low
IR (mA)	3000
IL (uA)	42.84@2Min
Lifetime (h)	2000
Polarity	Polar
Construction	Flat
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	7.3 X 4.3 X 1.9
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
