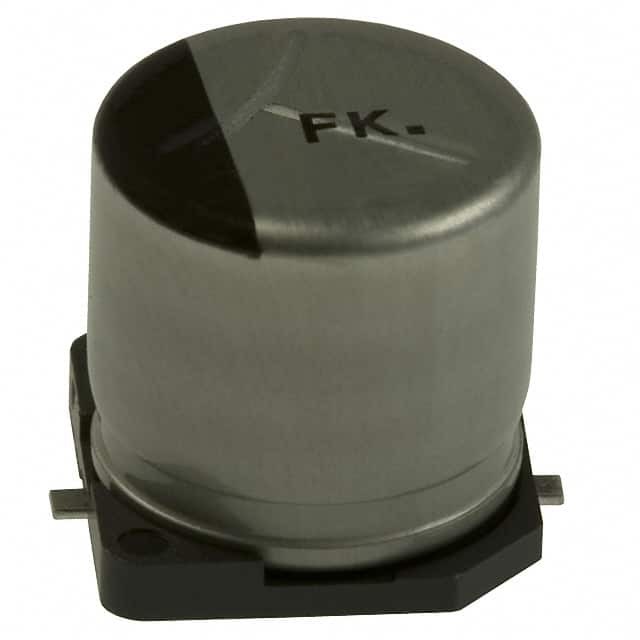

EEE-FK1V331P

SKU: 157776

Manufacturer: Panasonic

Cap Aluminum Lytic 330uF 35V 20% (10 X 10.2mm) SMD 850mA 2000h 105°C Automotive T/R

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.40
Automotive	Yes
PPAP	Unknown
Type	Electrolytic
Capacitance Value	330uF
Tolerance	20%
Voltage	35VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.08@20°C@100kHz
IR (mA)	850
IL (uA)	115.5@2Min
Lifetime (h)	2000
Polarity	Polar
Special Features	Low Impedance
Construction	Cylindrical
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	10 X 10.2
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Diameter (mm)	10
Height (mm)	10.2
Product Weight (g)	1.29
Diameter Tolerance (mm)	±0.5
