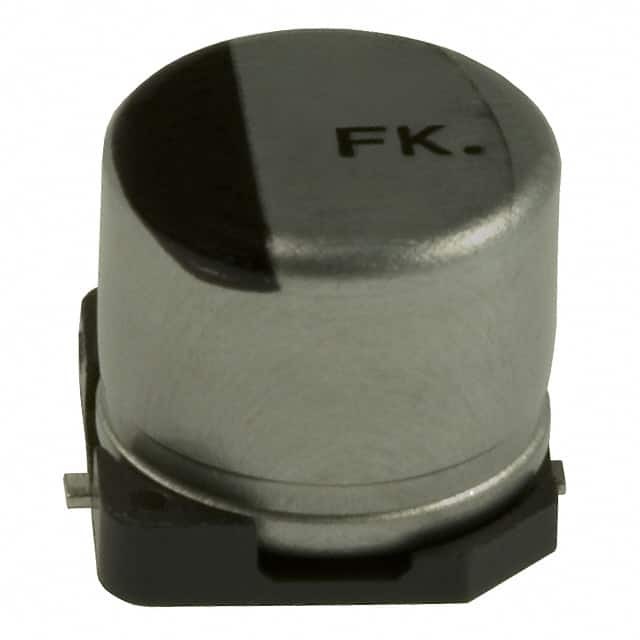

EEE-FK1E680P

SKU: 150663

Manufacturer: Panasonic

Cap Aluminum Lytic 68uF 25V 20% (6.3 X 5.8mm) SMD 240mA 2000h 105°C Automotive T/R

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.20
Automotive	Yes
PPAP	Unknown
Type	Electrolytic
Capacitance Value	68uF
Tolerance	20%
Voltage	25VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.36@20°C@100kHz
IR (mA)	240
IL (uA)	17@2Min
Lifetime (h)	2000
Polarity	Polar
Construction	Cylindrical
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	6.3 X 5.8
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Diameter (mm)	6.3
Height (mm)	5.8
