EEE-FK1C151XP

SKU: 51692

Manufacturer: Panasonic

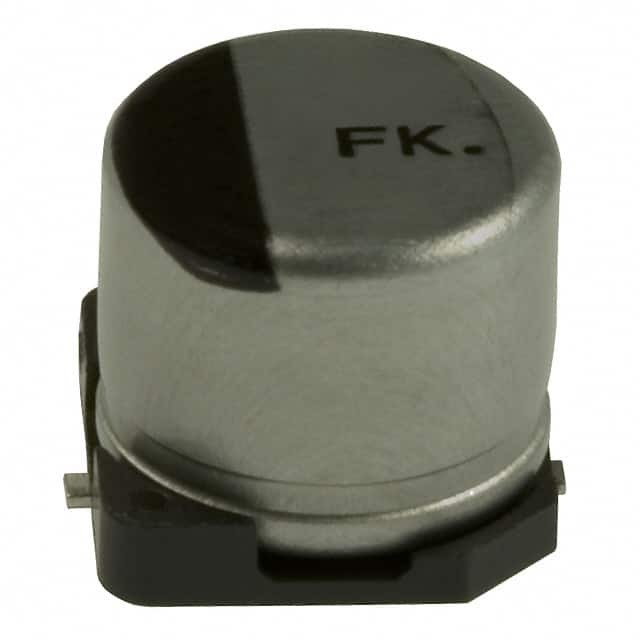

Cap Aluminum Lytic 150uF 16V 20% (6.3 X 7.7mm) SMD 280mA 2000h 105°C Automotive T/R

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.40
Automotive	Yes
PPAP	Unknown
Type	Electrolytic
Capacitance Value	150uF
Tolerance	20%
Voltage	16VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.34@20°C@100kHz
IR (mA)	280
IL (uA)	24@2Min
Lifetime (h)	2000
Polarity	Polar
Construction	Cylindrical
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	6.3 X 7.7
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Diameter (mm)	6.3
Height (mm)	7.7
