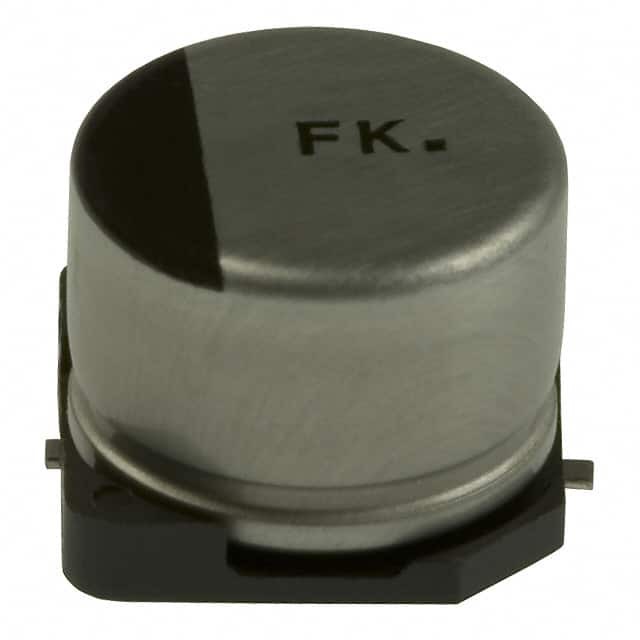

EEE-FK1A471P

SKU: 122289

Manufacturer: Panasonic

Cap Aluminum Lytic 470uF 10V 20% (8 X 10.2mm) SMD 600mA 2000h 105°C Automotive T/R

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.40
Automotive	Yes
PPAP	Unknown
Type	Electrolytic
Capacitance Value	470uF
Tolerance	20%
Voltage	10VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.16@20°C@100kHz
IR (mA)	600
IL (uA)	47@2Min
Lifetime (h)	2000
Polarity	Polar
Construction	Cylindrical
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	8 X 10.2
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Diameter (mm)	8
Height (mm)	10.2
