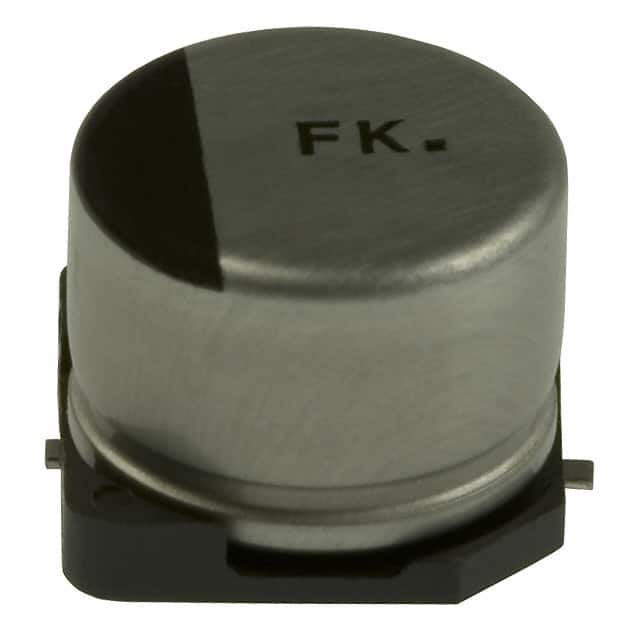

EEE-FK0J331AP

SKU: 23238

Manufacturer: Panasonic

Cap Aluminum Lytic 330uF 6.3V 20% (8 X 6.2mm) SMD 300mA 2000h 105°C Automotive T/R

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.20
Automotive	Yes
PPAP	Unknown
Type	Electrolytic
Capacitance Value	330uF
Tolerance	20%
Voltage	6.3VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.26@20°C@100kHz
IR (mA)	300
IL (uA)	20.79@2Min
Lifetime (h)	2000
Polarity	Polar
Construction	Cylindrical
Terminal Form	Surface Mount
Number of Terminals	2
Size (mm)	8 X 6.2
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Diameter (mm)	8
Height (mm)	6.2
