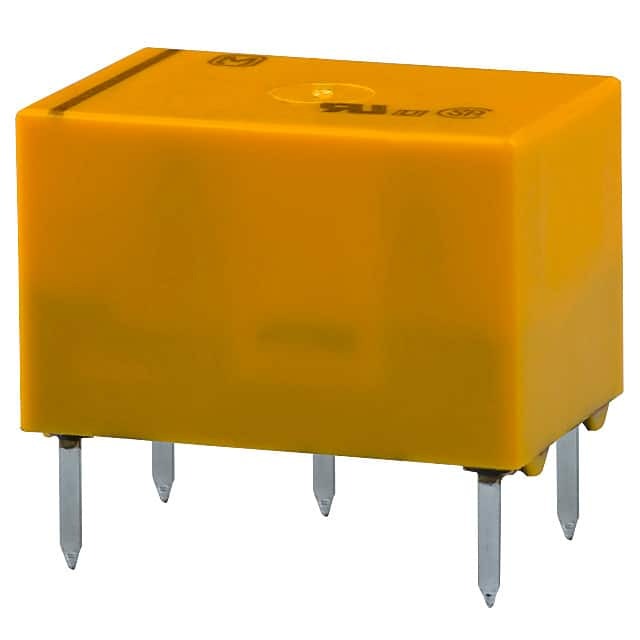

DS1E-SL-DC12V

SKU: 75174

Manufacturer: Panasonic

Signal Relay 12VDC 3A SPDT(15x9.9x9.9)mm THT

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	12
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	3
Operate Time (ms)	10
Relay Construction	Latching Single Coil
Contact Body Material	Silver/Gold Clad
Maximum Switching Power	60W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Product Weight (g)	3
Length (mm)	15
Depth (mm)	9.9
