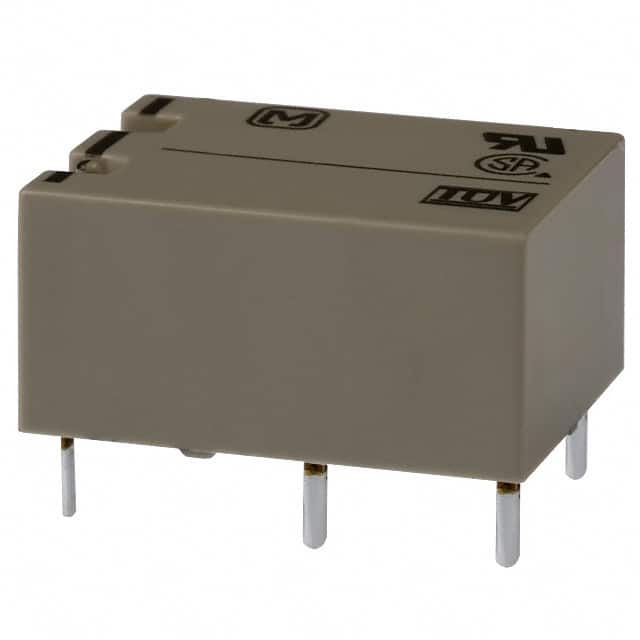

DK2A-L2-5V Panasonic

DK2A-L2-5V

SKU: 25612

Manufacturer: Panasonic

Power Relay 5VDC 8A DPST-NO(20x15x10)mm THT

Download sample

Request Free Samples

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPST-NO
Contact Form	2 Form A
DC Coil Voltage (V)	5
Coil Current (mA)	40
Coil Resistance (Ohm)	125
Maximum Pick-Up Voltage	3.5VDC
Minimum Dropout Voltage	3.5VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	125
Maximum Switching Current (A)	8
Maximum Switching Power	240W
Operate Time (ms)	10
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Latching Double Coil
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	7
Operating Temperature-Min	-40
Operating Temperature-Max	65
Product Weight (g)	6
Length (mm)	20
Depth (mm)	15
