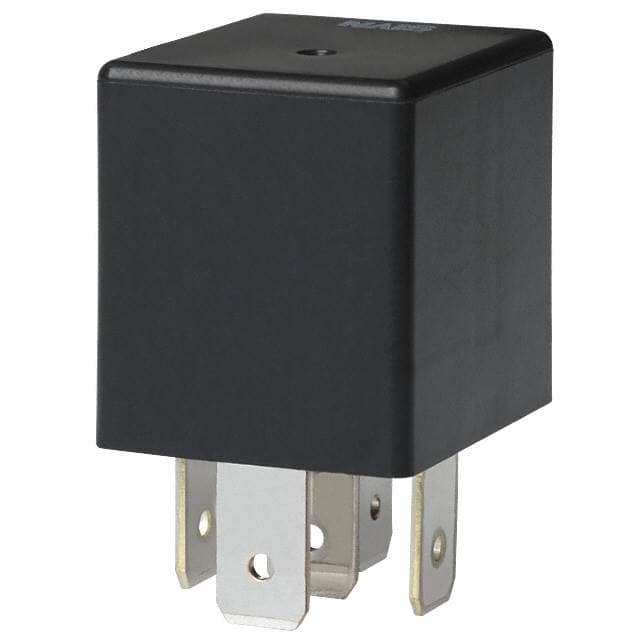

CB1-12V

SKU: 74807

Manufacturer: Panasonic

Power Relay 12VDC 40(NO)/30(NC)A SPDT(26mm 22mm 36mm) Plug-In Automotive

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.50
Automotive	Unknown
PPAP	Unknown
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	117
Coil Resistance (Ohm)	103
Maximum Pick-Up Voltage	7VDC
Minimum Dropout Voltage	1.2VDC
Maximum DC Switching Voltage (V)	14
Maximum Switching Current (A)	40(NO)/30(NC)
Operate Time (ms)	15
Release Time (ms)	15
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Plug-In
Terminal Form	Quick Connect
Number of Terminals	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	33
Length (mm)	26
Depth (mm)	22
