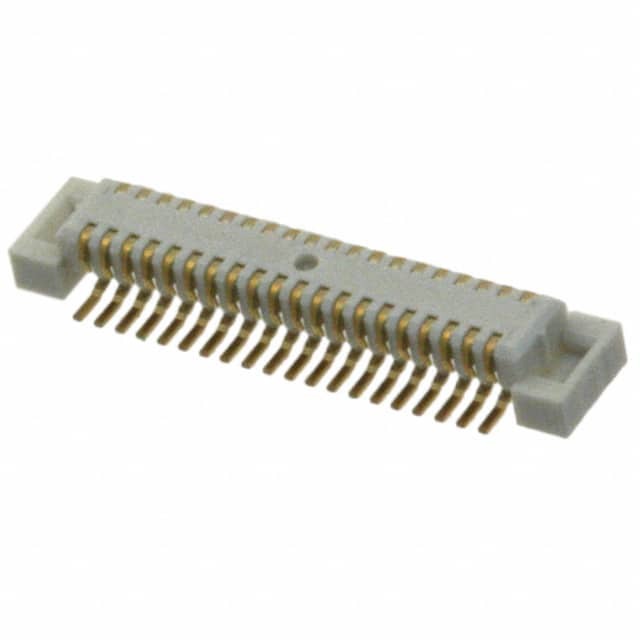

AXK6F80547YG

SKU: 152490

Manufacturer: Panasonic

Conn Board to Board PL 80 POS 0.5mm Solder ST SMD T/R

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	PL
Number of Contacts	80
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Straight
Current Rating-Max(A)	10
Voltage Rating-Max	60VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	90
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	50
Packing Method	Tape and Reel
Length (mm)	23
Depth (mm)	3.3
Height (mm)	1.75
