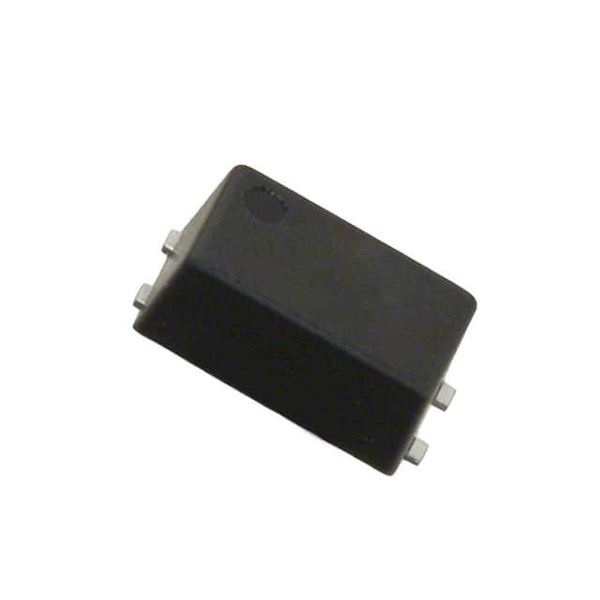

AQY221N3M

SKU: 30074

Manufacturer: Panasonic

Solid State Relay 50mA 1.5V DC-IN 0.15A 25V AC/DC-OUT 4-Pin SON

990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Maximum Input Voltage (V)	1.5
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	25
Maximum Output Current (A)	0.15
Output Device	MOSFET
Output Type	DC
I/O Isolation Voltage (V)	200
Maximum Off-State Leakage Current (uA)	0.01
Typical Input to Output Capacitance (pF)	0.8
Maximum Power Dissipation (mW)	300
Maximum Turn-On Time (ms)	0.2
Maximum Turn-Off Time (ms)	0.2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	SON
Original Package	SON
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.4
Package Length	2.2
Package Width	2.95
