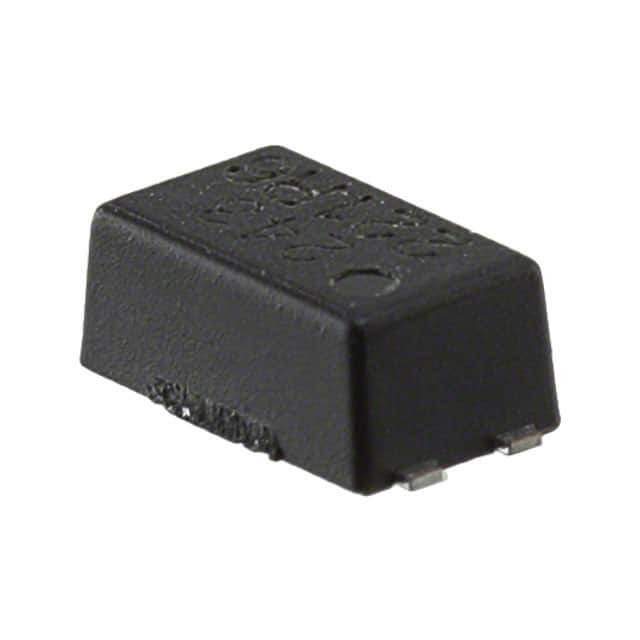

AQY221FR2V

SKU: 152369

Manufacturer: Panasonic

Solid State Relay 8.5mA 4V DC-IN 0.25A 40V AC/DC-OUT 4-Pin SSOP T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.3(Typ)
Maximum Input Voltage (V)	4
Maximum Input Current (mA)	8.5(Typ)
Maximum Output Voltage (V)	40
Maximum Output Current (A)	0.25
Output Device	MOSFET
Output Type	AC
I/O Isolation Voltage (V)	500
Maximum Off-State Leakage Current (uA)	0.01
Typical Input to Output Capacitance (pF)	0.8
Maximum Power Dissipation (mW)	300
Maximum Turn-On Time (ms)	0.5
Maximum Turn-Off Time (ms)	0.2
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	SSOP
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.8
Package Length	2.65
Package Width	4.45
PCB changed	4
