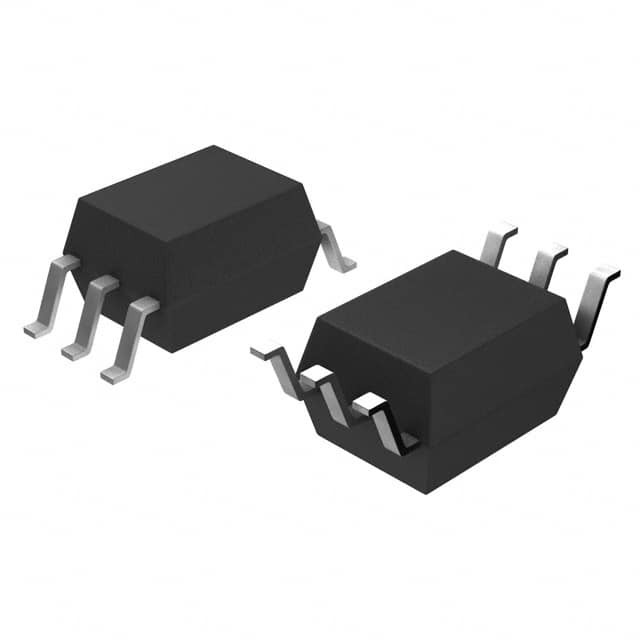

AQV224NS

SKU: 131094

Manufacturer: Panasonic

PhotoMOS Relay SSR 50mA 1.5V DC-IN 0.04A 400V AC/DC-OUT 6-Pin SOP Tube

4370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.25(Typ)
Maximum Input Voltage (V)	1.5
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	400
Maximum Output Current (A)	0.04
Output Device	MOSFET
Output Type	AC
I/O Isolation Voltage (V)	1500
Maximum Off-State Leakage Current (uA)	0.01
Typical Input to Output Capacitance (pF)	0.8
Maximum Turn-On Time (ms)	0.5
Maximum Turn-Off Time (ms)	0.2
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Original Package	SOP
Pin Count	6
Terminal Form	Surface Mount
Package Height	2.1
Package Length	6.3
Package Width	4.4
PCB changed	6
