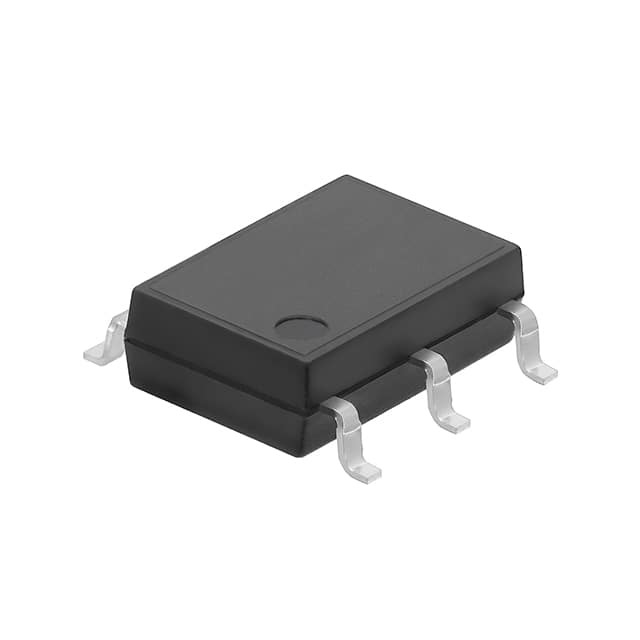

AQV216S

SKU: 123972

Manufacturer: Panasonic

PhotoMOS Relay SSR 50mA 1.5V DC-IN 0.04A 600V AC/DC-OUT 6-Pin SOP Tube

3460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.25(Typ)
Maximum Input Voltage (V)	1.5
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	600
Maximum Output Current (A)	0.04
Output Device	MOSFET
Output Type	AC
Minimum Load Current (mA)	40(Max)
I/O Isolation Voltage (V)	1500(RMS)
Maximum Off-State Leakage Current (uA)	1
Typical Input to Output Capacitance (pF)	0.8
Maximum Power Dissipation (mW)	500
Maximum Turn-On Time (ms)	0.5
Maximum Turn-Off Time (ms)	0.2
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Original Package	SOP
Pin Count	6
Terminal Form	Surface Mount
Package Height	2
Package Length	6.3
Package Width	4.4
PCB changed	6
