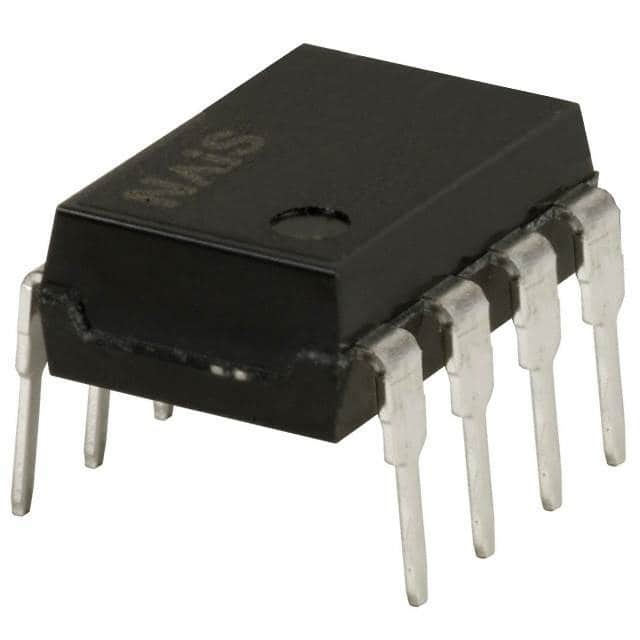

AQH2223

SKU: 145182

Manufacturer: Panasonic

Solid State Relay 50mA 1.3V DC-IN 0.9A 600V AC-OUT 7-Pin DIP Tube

18380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.20.00.40
Automotive	No
PPAP	No
Input Type	DC
Maximum Input Voltage (V)	1.3
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	600
Maximum Output Current (A)	0.9(RMS)
Output Device	Triac
Output Type	AC
I/O Isolation Voltage (V)	5000
Peak Non-Repetitive Surge Current (A)	9
Maximum Turn-On Time (ms)	0.1
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tube
Original Package	DIP
Pin Count	7
Terminal Form	Through Hole
Package Height	3.4
Package Length	9.78
Package Width	6.4
PCB changed	7
